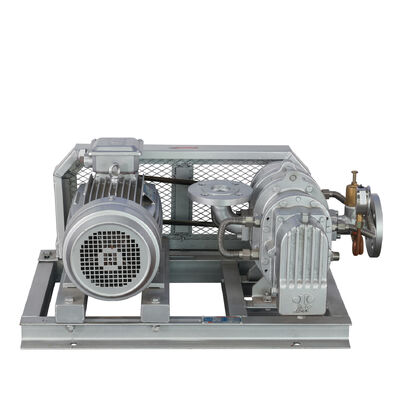

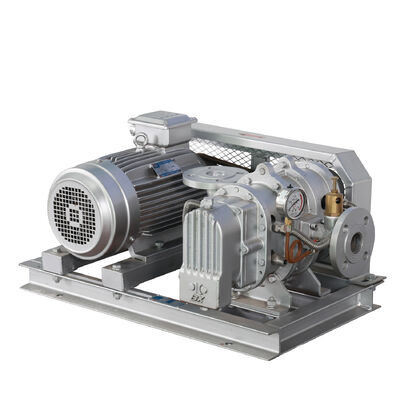

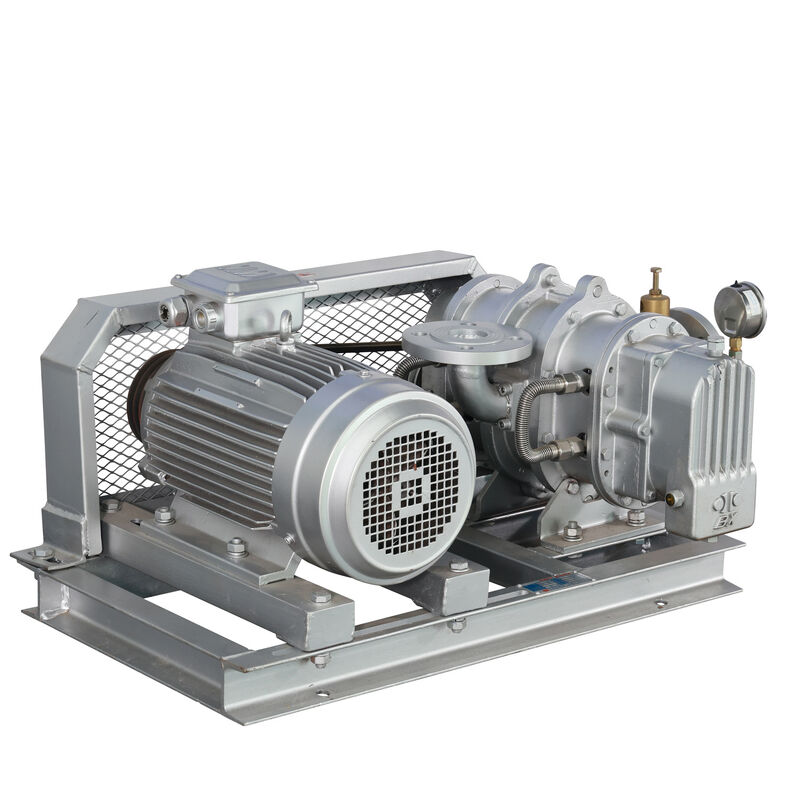

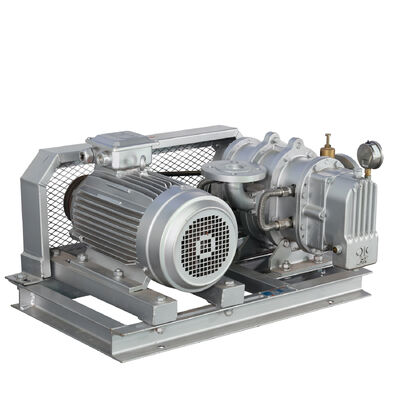

BX150 Stainless Steel Three Lobe Roots Blower 6'' 850-1650 RPM 12.88-34.99m³/min for Special Gas and Incinerator Applications

BX150 Stainless Steel Three Lobe Roots Blower 6'' 850-1650 RPM 12.88-34.99m³/min for Special Gas and Incinerator Applications

BX150 Stainless Steel Three Lobe Roots Blower 6'' 850-1650 RPM 12.88-34.99m³/min for Special Gas and Incinerator Applications
BX150 Stainless Steel Three Lobe Roots Blower 6'' 850-1650 RPM 12.88-34.99m³/min for Special Gas and Incinerator Applications
BX150 Stainless Steel Three Lobe Roots Blower 6'' 850-1650 RPM 12.88-34.99m³/min for Special Gas and Incinerator Applications
Dettagli:
Luogo di origine: Cina
Marca: BK
Certificazione: ISO9001
Numero di modello: BX150
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1
Prezzo: Negoziabile
Imballaggi particolari: Cassa di legno esportata
Tempi di consegna: 25 giorni lavorativi
Capacità di alimentazione: 500 set/mese
Contatto
Descrizione di prodotto dettagliata
modello: BX150 Porta Dia.: 150 (6")
Velocità: 850-1650 giri al minuto Flusso d'aria: 12,88-34,99 m³/min
Potenza dell'albero: 4,55-50,62 kW Pressione: 10-70 kPa
Materiale della girante: Acciaio inossidabile Applicazioni: Gas speciali, inceneritori, bonifica tubazioni, trattamenti termici
Vantaggi: Facile installazione, controllo intelligente, basso rumore, piccola vibrazione Potenza del motore: 18.5-55kw
Peso: 560 kg Bulloni di fondazione: 6-M16*400
Evidenziare:

Stainless Steel Roots Blower

,

Three Lobe Air Blower

,

High RPM Roots Blower

BX150  6''  12.88-34.99m³/min Stainless Steel Roots Blower

1,The main components of BX Roots blower are precisely machined from stainless steel.

2,Key components are processed by machining center at one time,and the dimensional tolerance is accurate to ensure the processing accuracy and the operation stability of the blower under different working conditions.

3,The impeller is made of stainless steel.The special strength and rigidity make the impeller meet the conditions of high speed continuous load without fatigue and deformation.

4,The sealing structure adopts a double mechanical sealing structure and a water cooling sealing system to achieve the reliability of the sealing under different harsh conditions, thus ensuring the leak-free operation of BX Roots blower.



BX150 Stainless Steel Three Lobe Roots Blower 6'' 850-1650 RPM 12.88-34.99m³/min for Special Gas and Incinerator Applications 0







Product Parameters



Performance Parameters Sheet:

Type
Port Dia(MM)		 Speed Inlet airflow(m³／min) and shaft power(KW) at different conditions
0.1kgf/c㎡ 0.2kgf/c㎡ 0.3kgf/c㎡ 0.4kgf/c㎡ 0.5kgf/c㎡ 0.6kgf/c㎡ 0.7kgf/c㎡
1000mmH₂O 2000mmH₂O 3000mmH₂O 4000mmH₂O 5000mmH₂O 6000mmH₂O 7000mmH₂O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa 0.05Mpa 0.06Mpa 0.07Mpa
rpm m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW
BX150 150(6") 850 16.42 4.55 15.55 7.97 14.88 10..84 14.33 14.33 13.83 18.05 13.40 21.54 12.88 23.43
1000 19.68 5.35 18.81 9.37 18.14 12.76 17.60 16.86 17.10 21.23 16.66 25.34 16.25 26.99
1150 22.95 6.15 22.08 10.78 21.40 14.67 20.86 19.39 20.36 24.42 19.92 29.14 19.51 31.04
1250 25.12 6.69 24.25 11.72 23.58 15.95 23.03 21.08 22.53 26.54 22.10 31.67 21.69 33.74
1400 28.39 7.49 27.52 13.12 26.84 17.86 26.30 23.61 25.80 29.73 25.36 35.48 24.95 37.79
1500 30.56 8.03 29.69 14.06 29.02 19.14 28.47 25.30 27.97 31.85 27.54 38.01 27.12 40.49
1650 34.99 10.47 33.68 17.05 32.07 22.07 32.05 28.37 31.53 36.15 31.34 43.29 30.89 50.62


Outline Dimension


BX150 Stainless Steel Three Lobe Roots Blower 6'' 850-1650 RPM 12.88-34.99m³/min for Special Gas and Incinerator Applications 1BX150 Stainless Steel Three Lobe Roots Blower 6'' 850-1650 RPM 12.88-34.99m³/min for Special Gas and Incinerator Applications 2


Outline Dimension Sheet


Model Port Dia.(DN) Motor Power (kw) A B B1 C D E F G H R I J K L M N P Foundation Bolts Weight(kg)
BX150 6" 18.5~55KW 1500 1150 575 175 465 800 430 447 1700 106 28 394 267 722 180 1000 24 6-M16x400 560


Sample Use
BX150 Stainless Steel Three Lobe Roots Blower 6'' 850-1650 RPM 12.88-34.99m³/min for Special Gas and Incinerator Applications 3



FAQ

Q1. Are you manufacturer or trading company?

We are the professional machinery manufacturer.Now the company has formed an annual production and sales scale of more than 30000 sets of blowers and water pumps.



Q2: Where is your factory located? May I have a visit?

Warmly welcome! Our factory is located in the Industrial Park for Environmental Science and Technology , Yixing, China.



Q3:What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.



Q4: What is your warranty?
Our warranty is 12 months after received the machine.



Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.



Q6.What is the delivery time?
Product delivery time is generally within 45 days from receipt of deposit.



Q7.Does your machine with CE certificate?
Yes.We have CE certificate,we will offer it if you need.



Q8. Do you accept customization?
We accept customization and we have a professional technical team to provide you with the best solution.
