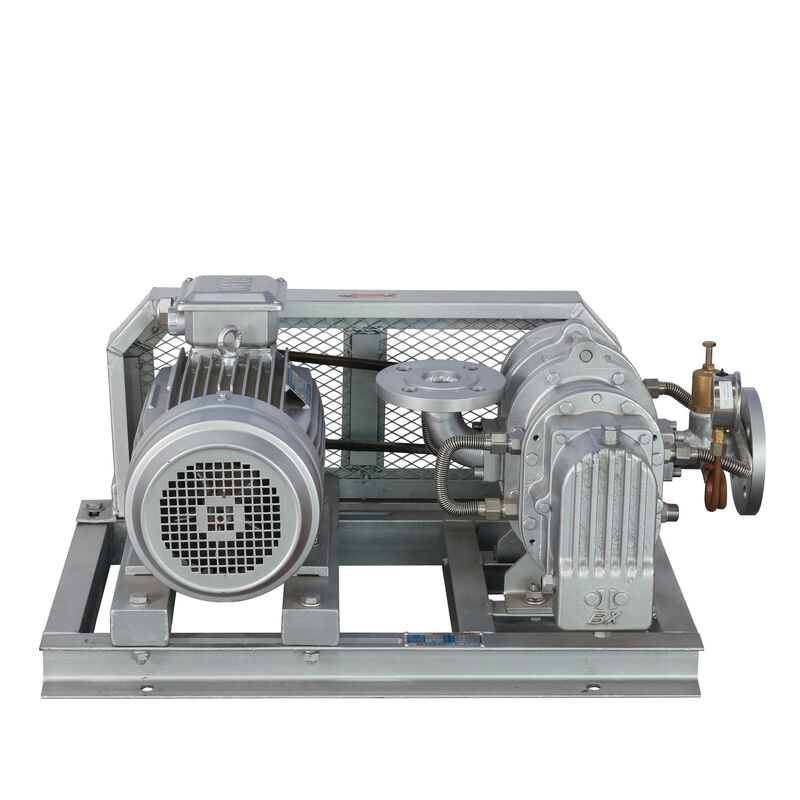

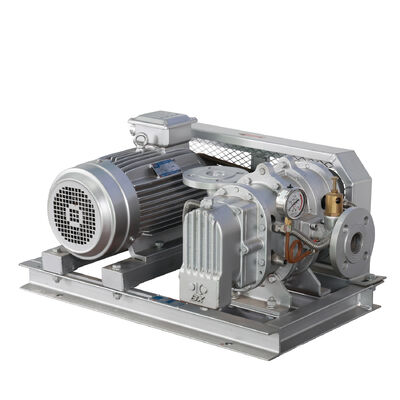

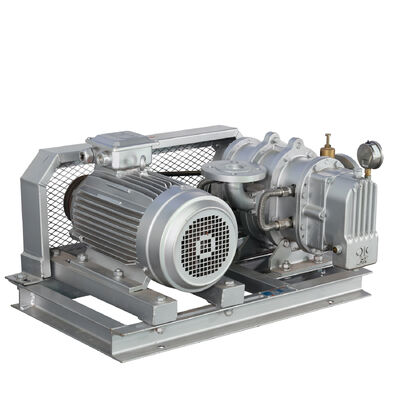

BX80 3'' 3.54-11.74 m³/min 0.1-0.7 kgf/cm² Stainless Steel Roots Blower

BX80 3'' 3.54-11.74 m³/min 0.1-0.7 kgf/cm² Stainless Steel Roots Blower

BX80 3'' 3.54-11.74 m³/min 0.1-0.7 kgf/cm² Stainless Steel Roots Blower
BX80 3'' 3.54-11.74 m³/min 0.1-0.7 kgf/cm² Stainless Steel Roots Blower
BX80 3'' 3.54-11.74 m³/min 0.1-0.7 kgf/cm² Stainless Steel Roots Blower
Dettagli:
Luogo di origine: Cina
Marca: BK
Certificazione: ISO9001
Numero di modello: BX80
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1
Prezzo: Negoziabile
Imballaggi particolari: Cassa di legno esportata
Tempi di consegna: 25 giorni lavorativi
Capacità di alimentazione: 500 set/mese
Contatto
Descrizione di prodotto dettagliata
Modello: BX80 Porta Dia.: 80 (3")
Velocità: 850-1800 giri al minuto Flusso d'aria: 3,54-11,74 m³/min
Potenza dell'albero: 1,68-11,74 kW Pressione: 10-70 kPa
Materiale della girante: Acciaio inossidabile Applicazioni: Trattamento termico, radura dei tubi, gas speciale
Vantaggi: Facile installazione, controllo intelligente, basso rumore, piccola vibrazione Potenza del motore: 3-22KW
Peso: 270 kg Bulloni di fondazione: 4-M16*300

BX80 3'' 3.54-11.74 m³/min Stainless Steel Roots Blower

1,The main components of BX Roots blower are precisely machined from stainless steel.

2,Key components are processed by machining center at one time,and the dimensional tolerance is accurate to ensure the processing accuracy and the operation stability of the blower under different working conditions.

3,The impeller is made of stainless steel.The special strength and rigidity make the impeller meet the conditions of high speed continuous load without fatigue and deformation.

4,The sealing structure adopts a double mechanical sealing structure and a water cooling sealing system to achieve the reliability of the sealing under different harsh conditions, thus ensuring the leak-free operation of BX Roots blower.



BX80 3'' 3.54-11.74 m³/min 0.1-0.7 kgf/cm² Stainless Steel Roots Blower 0







Product Parameters



Performance Parameters Sheet:

Type
(MM)Port Dia		 Speed Inlet airflow(m³／min) and shaft power(KW) at different conditions
0.1kgf/c㎡ 0.2kgf/c㎡ 0.3kgf/c㎡ 0.4kgf/c㎡ 0.5kgf/c㎡ 0.6kgf/c㎡ 0.7kgf/c㎡
1000mmH₂O 2000mmH₂O 3000mmH₂O 4000mmH₂O 5000mmH₂O 6000mmH₂O 7000mmH₂O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa 0.05Mpa 0.06Mpa 0.07Mpa
rpm m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW
BX80 80(3") 850 5.01 1.68 4.58 3.00 4.26 3.96 3.99 4.94 3.75 6.09 3.54 7.24
1000 6.07 1.98 5.65 3.53 5.33 4.66 5.05 5.82 4.82 7.17 4.60 8.51 4.40 9.60
1150 7.13 2.28 6.71 4.05 6.39 5.36 6.11 6.69 5.88 8.24 5.67 9.79 5.46 11.04
1250 7.84 2.47 7.42 4.41 7.10 5.83 6.82 7.27 6.59 8.96 6.38 10.64 6.17 12.00
1400 8.91 2.77 8.48 4.94 8.16 6.53 7.89 8.14 7.65 10.03 7.44 11.92 7.23 13.43
1500 9.61 2.97 9.19 5.29 8.87 6.99 8.59 8.73 8.36 10.75 8.15 12.77 7.94 14.39
1650 10.68 3.27 10.25 5.82 9.93 7.69 9.66 9.60 9.42 11.82 9.21 14.05 9.00 15.83
1800 11.74 3.56 11.31 6.35 11.00 8.39 10.72 10.47 10.49 12.90 10.27 15.33 10.07 17.27




Outline Dimension


BX80 3'' 3.54-11.74 m³/min 0.1-0.7 kgf/cm² Stainless Steel Roots Blower 1BX80 3'' 3.54-11.74 m³/min 0.1-0.7 kgf/cm² Stainless Steel Roots Blower 2


Outline Dimension Sheet


Model Port Dia.(DN) Motor Power (kw) A B B1 C D E F G H R I J K L M N P Foundation Bolts Weight(kg)
BX80 3" 3~22KW 1200 900 450 150 425 692 340 380 1455 118 20 318 193 550 135 900 18 4-M16x300 270


Sample Use
BX80 3'' 3.54-11.74 m³/min 0.1-0.7 kgf/cm² Stainless Steel Roots Blower 3



FAQ

Q1. Are you manufacturer or trading company?

We are the professional machinery manufacturer.Now the company has formed an annual production and sales scale of more than 30000 sets of blowers and water pumps.



Q2: Where is your factory located? May I have a visit?

Warmly welcome! Our factory is located in the Industrial Park for Environmental Science and Technology , Yixing, China.



Q3:What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.



Q4: What is your warranty?
Our warranty is 12 months after received the machine.



Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.



Q6.What is the delivery time?
Product delivery time is generally within 45 days from receipt of deposit.



Q7.Does your machine with CE certificate?
Yes.We have CE certificate,we will offer it if you need.



Q8. Do you accept customization?
We accept customization and we have a professional technical team to provide you with the best solution.
